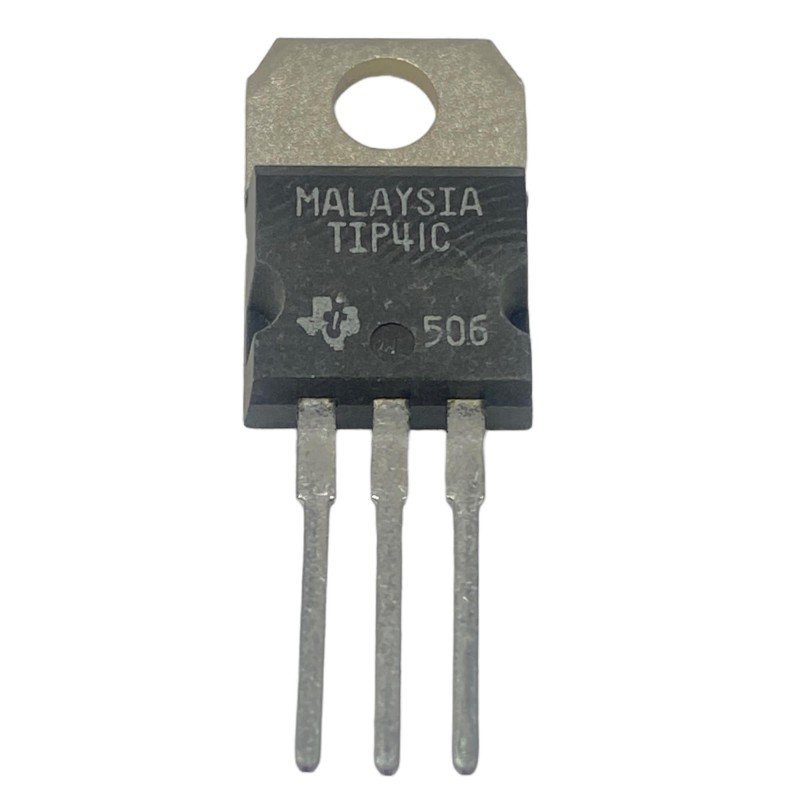

TIP41 NPN Power Transistor (TO-220) - Buy TIP41C Transistor Online At

The TIP41C is a base island technology NPN power transistor in TO-220 plastic package that make this device suitable for audio, power linear and switching applications. Part Status:Active Transistor Type:NPN Current - Collector (Ic) (Max):6A Voltage - Collector Emitter Breakdown (Max):100V Vce Saturation (Max) @ Ib, Ic:1.5V @ 600mA, 6A Current - Collector Cutoff (Max):700µA DC Current Gain (hFE) (Min) @ Ic, Vce:15 @ 3A, 4V Power - Max:2W Frequency - Transition:3MHz Operating Temperature:150°C (TJ) Mounting Type:Through Hole Package / Case:TO-220-3 Supplier Device Package:TO-220-3 Base Part Number:TIP41 Package include: 20pcs*Tip41c Collector-Emitter Saturation Voltage - VCE(sat) = 1.5 V (Max) @ IC = 6.0 Adc Collector-Emitter Sustaining Voltage -VCEO(sus) =100 Vdc (min) - TIP41C, TIP42C Driver and Output Stages of Hi-Fi Amplifiers
