New Speed Control Unit Controller Governor For Diesel Generator EG3000 Engine

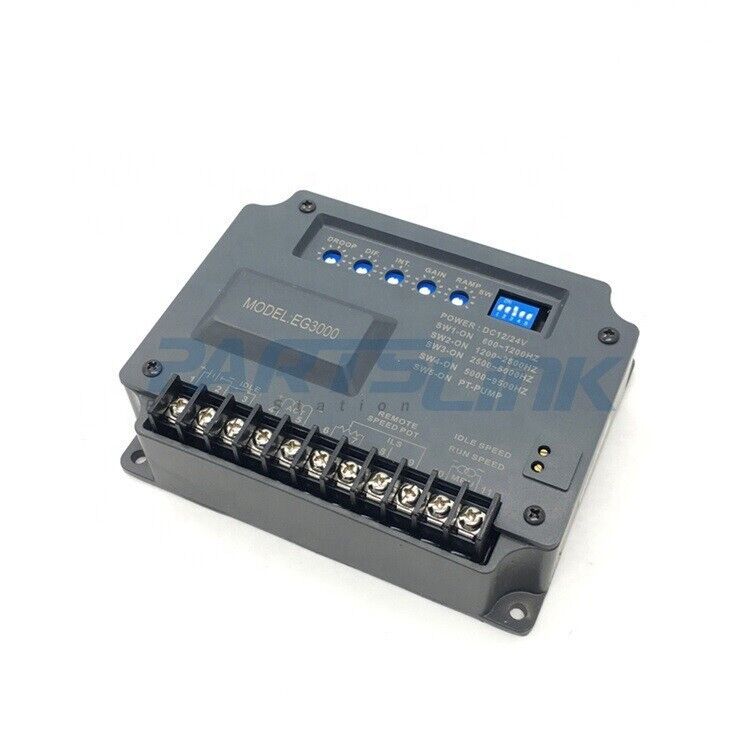

EG3000 Engine Speed Control Unit Controller Governor for diesel/gasoline Generator Motor Engine Speed Control Unit Controller Governor EG3000 Universal Engine Governor Controller Function Descriptions of Engine Speed Governor EG3000 The EG3000 is an electronic speed controller designed for precise speed control of diesel, and gasoline / petrol engines. The EG3000 installed together with a magnetic pickup / MPU and an actuator from the enginer governor assembly. The EG3000 has adjustable idle speed and also adjustable fuel limilting function for controlling engine smoke and vibration during start. This rotational speed is compared with the setting in the EG3000 and any difference results in an output to the actuator to change the speed. DIP Switch settings on the EG3000 are used to select the frequency range for the MPU. The EG3000 receives its power from the engine batteries or from an AC to DC power supply rated at 12 Vdc or 24 Vdc (+-20%) to match the actuator voltage. Remote speed pot terminal 6, 7, 8 (ILS) and 6, 7, 9 connect a 5K ohms potentiometer +/- 5% adjustment range. Run Speed Stability : Less than +/ - 0.25% at steady stateat MPU Input signal : 1 to 120 Vac Droop: 4% ... The EG3000 is an electronic speed controller designed for precise speed control of diesel, and gasoline / petrol engines The EG3000 receives its power from the engine batteries or from an AC to DC power supply rated at 12 Vdc or 24 Vdc (+-20%) to match the actuator voltage
